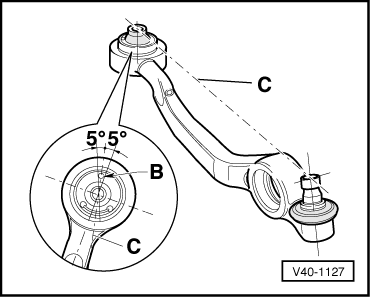

Fig. 2 Aligning control arm bushing to control arm
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of AUDI OF AMERICA, LLC
|
NOTE:
Identification knob on control arm bushing -B- can deviate by ± 5_ from center line -C-.
When the modified bushing is installed the installation specification described is no longer applicable.
