Driver Side And Passenger Side Rear Exit Warning Lamp W113/W114, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the interior door mechanism. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .

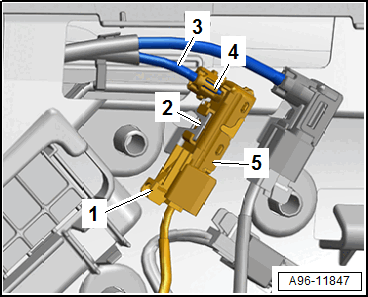

-- Disconnect the connector -1-.
-- Remove the lamp -5- from the mount -2-.
-- Release the retainers -4-.
-- Remove the lamps from the fiber-optic cable -3-.
