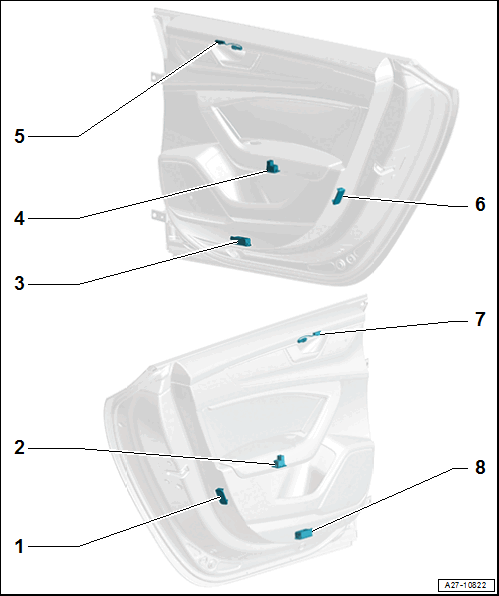

Component Location Overview - Rear Door Lamps

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Left Door Warning Reflector
Left Rear Door Storage Compartment Illumination Lamp -L257-
- Refer to DOOR STORAGE COMPARTMENT ILLUMINATION L255/L256/L257/L258, REMOVING AND INSTALLING .
Passenger Side Rear Entry Lamp -W84-
- Refer to DRIVER/PASSENGER SIDE REAR ENTRY LAMP W83/W84, REMOVING AND INSTALLING .
Right Rear Door Storage Compartment Illumination Lamp -L258-
- Refer to DOOR STORAGE COMPARTMENT ILLUMINATION L255/L256/L257/L258, REMOVING AND INSTALLING .
Passenger Side Rear Interior Door Handle Illumination Bulb -L222-
- Refer to Rear Interior Door Handle Illumination Lamp, Removing and Installing .
Right Door Warning Reflector
Driver Side Rear Interior Door Handle Illumination Bulb -L221-
- Refer to Rear Interior Door Handle Illumination Lamp, Removing and Installing .
Driver Side Rear Entry Lamp -W83-
- Refer to DOOR STORAGE COMPARTMENT ILLUMINATION L255/L256/L257/L258, REMOVING AND INSTALLING .
