Switch Module In Instrument Panel, Center Ex22, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

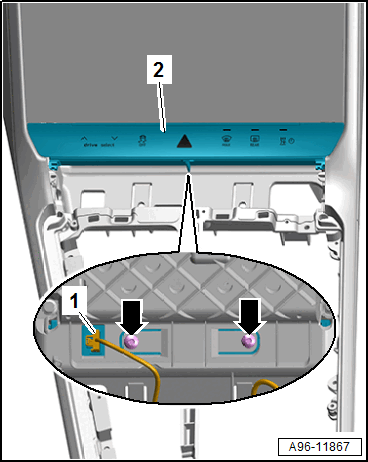

-- Remove the Center Console Switch Module 1 -EX23-. Refer to Center Console Switch Module 1 EX23, Removing and Installing .
-- Disconnect the connector -1-.
-- Remove the bolts -arrows-.
-- Remove the Switch Module in Instrument Panel, Center -EX22- -2-.
