Center Console Switch Module 1 Ex23, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Remove the cover for the center console insert. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

-- Disconnect the connectors -1-, -2- and -3-.

Fig 1: Switch Module in Instrument Panel, Center -EX22-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the Center Console Switch Module 1 -EX23- -4-.

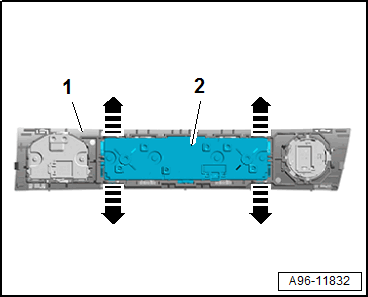

-- Release the retainers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the switch module -2- from the switch trim -1-.
