Rear Lid Tail Lamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Removing the trim molding. Refer to OVERVIEW - TRIM MOLDING .

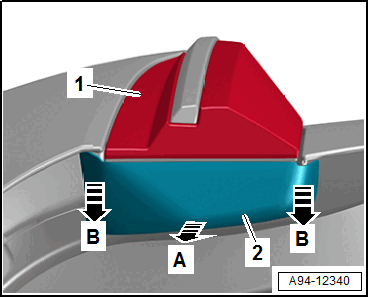

-- Release the cover -2- using the Trim Removal Wedge :3409 from the retainers -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the cover -2- down -arrows B- off of the tail lamp -1-.

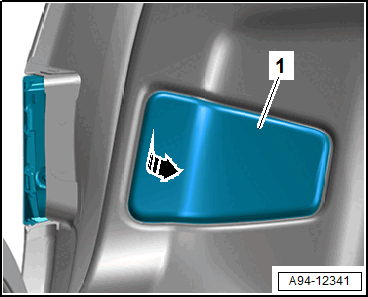

-- Release the cover -1- from the clips -arrow- using the Trim Removal Wedge :3409 .

Courtesy of AUDI OF AMERICA, LLC

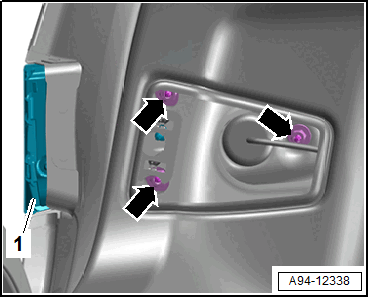

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tail lamp assembly -1-.

-- Disconnect the connector.
