Left And Right Headlamp Fan V407/V408, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

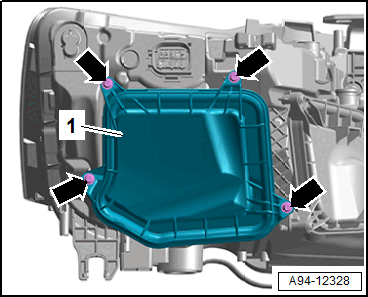

-- Remove the cover -1-.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fan -1-.

-- Disconnect the connector.

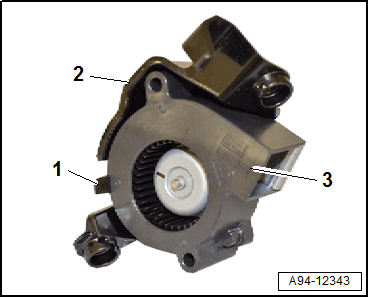

-- Release the retainer -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fan -3- from the bracket -2-.
