Adjustment Dimensions, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
TIP:

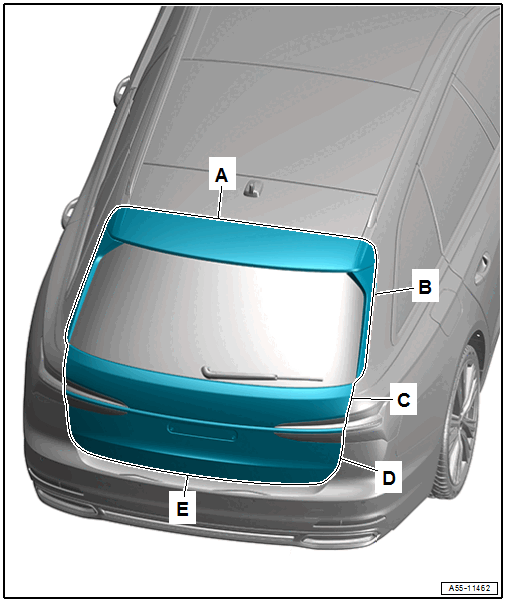

Gap dimensions apply to the specified areas.
- A -
Rear Lid to Roof
- Gap dimension = 4.0 mm
- B -
Rear Lid to Top of Side Panel
- Gap dimension = 4.0 mm
- C -
Rear Lid to Side Panel Bottom
- Gap dimension = 3.5 mm
- D -
Rear Lid to Side Panel Bottom
- Gap dimension = 3.5 mm
- E -
Rear Lid to Rear Lid End
- Gap dimension = 5.0 mm
