Rear Lid Opener Control Module -J938-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

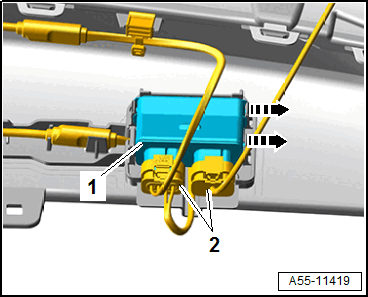

-- Disconnect the connectors -2-.

GWWA55-11419Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -arrows- and remove the control module -1- from the bracket on the bumper cover.
