Rear Lid Motor Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear lid motor only at the mounts and move to the side. Refer to REAR LID MOTOR, REMOVING AND INSTALLING .

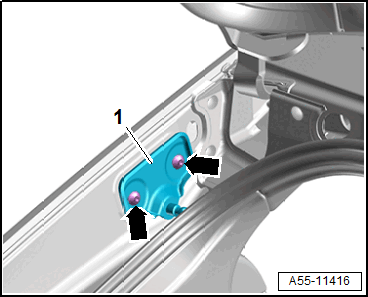

Lower:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the mount -1-.

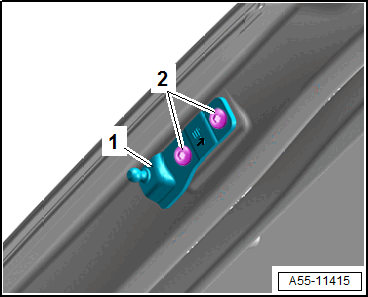

Upper:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Remove the mount -1-.
