Rear Lid Control Module -J605-, REMOVING AND INSTALLING, A6 SEDAN AND A7 SPORTBACK: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM , or LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM .

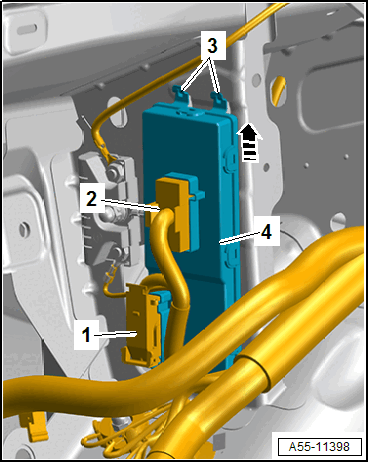

-- Disconnect the connectors -1 and 2-.
-- Release the catches -3- and slide the control module -4- at the same time in the direction of -arrow-. (Different installation position.)
- Doing so disengages the brackets from the guides.
-- Remove the rear lid control module.
