Power Rear Lid Opening Sensors -G750- / -G760-, Removing And Installing, A6 Version 1, A7 SPORTBACK: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the nuts/bolt -arrows- on the lower section of the bumper cover.

GWWA63-11407Courtesy of AUDI OF AMERICA, LLC

-- Remove the power rear lid opening control module. Refer to Rear Lid Opener Control Module -J938-, REMOVING AND INSTALLING .

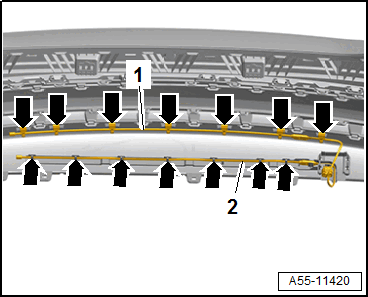

-- Free up the sensor -1 and 2- at the brackets -arrows-.

GWWA55-11420Courtesy of AUDI OF AMERICA, LLC

-- Remove the sensor.
