Latch Release Cable, Removing And Installing, A6, A7 SPORTBACK: Installing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

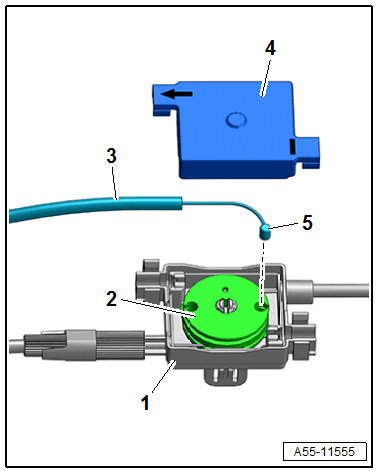

-- Engage the nipple -5- from the release cable -3- into the roller -2- from the coupling -1- and push the release cable into the support bracket.
-- Position the housing cover -4- so that the printed "line" points toward the free coupling connection.
-- To release the latches evenly, adjust the release cable at the thumbwheel.
