Hood, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Equipped on some models: remove the washer nozzles. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .

-- Guide the wiring harness out of the hood and free it up.

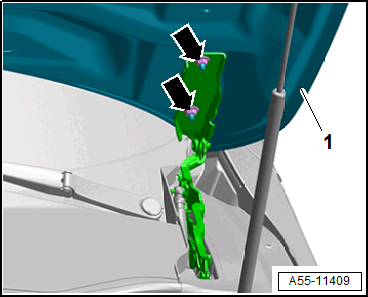

-- Remove the nuts -arrows- from the hinge.

GWWA55-11409Courtesy of AUDI OF AMERICA, LLC

-- Remove the gas-filled strut. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .

-- Remove the hood -1-.
