Hinges, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front lid. Refer to HOOD, REMOVING AND INSTALLING .
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
-- Bring the hinge into the "closed" position.
-- Mark the hinge installation position for reinstallation.

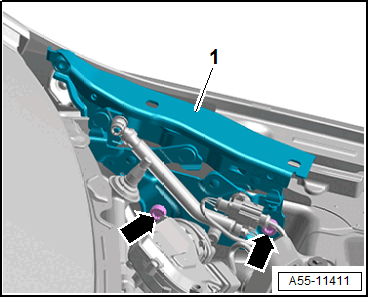

-- Remove the bolts -arrows-.
-- Remove the hinge -1-.
-- Vehicles with pedestrian protection: remove the pedestrian protection trigger. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
