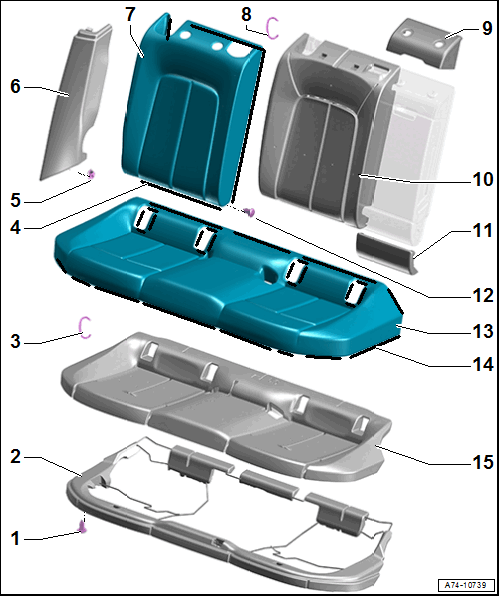

Overview - Cover And Cushion, Folding Backrest
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- For attaching the cover to the seat frame
- Quantity: 12
- Seat Frame
- Molded Part
- Removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Upholstery Clip
- For securing the cover to the cushion
- Always replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
- Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
- Nut
- 9 Nm
- Side Cushion
- Removing and installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
- Cover
- Folding backrest
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, FOLDING BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Upholstery Clip
- For securing the cover to the cushion
- Always replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
- Center Cushion
- Upper
- Removing and installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, UPPER .
- Cushion
- Folding backrest
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, FOLDING BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
- Center Cushion
- Lower
- Removing and installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, LOWER .
- Clip
- For attaching the cover to the backrest frame
- Quantity: 2
- Cover
- Rear Bench Seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Molding
- Sewn into cover
- For engaging the cover to the seat frame
- Make sure it fits correctly in the seat frame
- Cushion
- Rear Bench Seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
