Cover And Cushion, Separating: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .

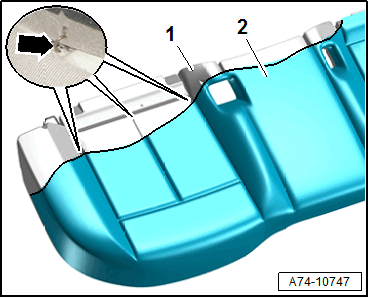

Cover and Cushion, Separating, Rear Bench Seat:

GWWA74-10747Courtesy of AUDI OF AMERICA, LLC

-- Pull the cover -2- as far off of the cushion -1- as possible and cut the upholstery clips -arrow- using pliers.

-- Cut the remaining upholstery clips and remove the cover from the cushion.

Cover and Cushion, Separating, Rear Seat Backrest

GWWA74-10482Courtesy of AUDI OF AMERICA, LLC

-- Pull the cover -2- as far off of the cushion -1- as possible and cut the upholstery clips -arrow- using pliers.

-- Cut the remaining upholstery clips and remove the cover from the cushion.
