Cover And Cushion, Removing And Installing, Rear Bench Seat: Notes

Special tools and workshop equipment required

• Pry Lever:80-200
  Fig 1: Identifying Pry Lever

  Courtesy of AUDI OF AMERICA, LLC

Removing

-- Remove the rear bench seat. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .

-- Place the rear seat bench on a clean surface.

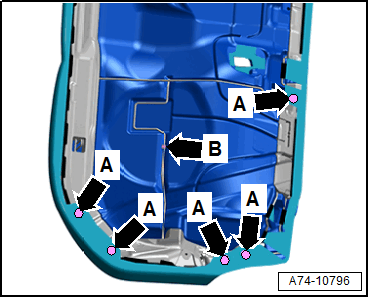

-- Pry out the expanding clips -A arrows- with the Pry Lever:80 - 200  .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the wire frame at the clip -arrow B-.

-- Repeat the procedure on the opposite side.

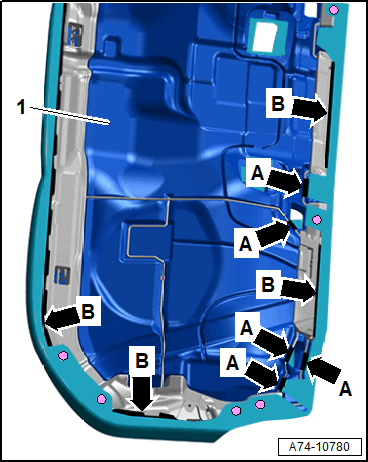

-- Disengage the molding -A arrows- of seat cover on the seat frame.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, cut through the upholstery clips with pliers.

-- Repeat the procedure on the opposite side.

-- Pry out the cover clamping strips -B arrows- using a flat-head screwdriver and remove it by hand along the seat frame all around the molded part.

-- Equipped on some models: free up the wire if necessary and disconnect the connectors.

-- Remove the cover and cushion -1- from the seat frame.

Market-specific:

Courtesy of AUDI OF AMERICA, LLC

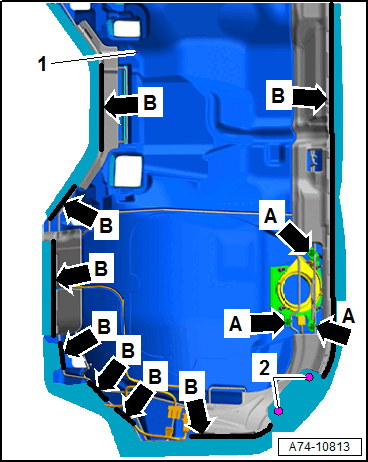

-- Loosen the seat cushion fan bracket -A arrows- from the seat frame.

-- Pry out the expanding clips -2- with the Pry Lever:80 - 200  .

-- Repeat the procedure on the opposite side.

-- Pry out the molding/clamping strips -B arrows- for the cover using a flat-head screwdriver and remove it by hand along the seat frame all around the molded part.

-- Equipped on some models: free up the wire if necessary.

-- If equipped, cut through the upholstery clips with pliers.

-- Remove the cover and cushion -1- from the seat frame.
