Center Cushion, Removing And Installing, Upper: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- 2+1 divided seat: remove the headrest guide from the center backrest. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, CENTER FOLDING BACKREST, 2+1 DIVIDED SEATS .

-- Remove the trim -1- using the Pry Lever:80-200 -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the center cushion upward from the pass-through -arrows- using the Trim Removal Wedge:3409 .

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Pry Lever:80-200 between the cushion and trim panel in the location shown.

Courtesy of AUDI OF AMERICA, LLC

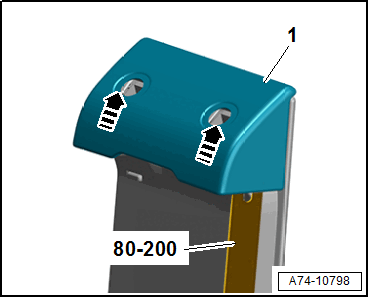

-- Unclip the center cushion -1- upward from the front of the pass-through -arrows- using the Pry Lever:80-200 .
