Seat Pan Cover And Cushion, Removing And Installing, Standard Seat: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the Engine/Transmission Holder - Seat Repair Fixture:VAS 6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the tunnel-side seat frame trim panel. Refer to SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, TUNNEL-SIDE .

-- Remove the seat frame trim panel on the side sill side. Refer to SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, STANDARD/SPORT/SUPER SPORT SEAT .

-- Equipped on some models: remove the fire extinguisher bracket. Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING .

-- If installed, remove the bolts -arrows- and remove the child seat anchor -1- from the front seat.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the wiring harness connectors for the backrest and free up the disconnected wiring harnesses. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .

-- Remove the backrest. Refer to BACKREST, REMOVING AND INSTALLING .

-- North America versions with passenger occupant detection system: note the information. Refer to SEAT OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .

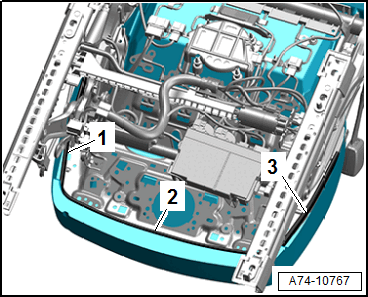

-- Detach the molding -1, 2 and 3- from the cover in the front and side areas using the Backrest Panel Tool:3370 .

Courtesy of AUDI OF AMERICA, LLC

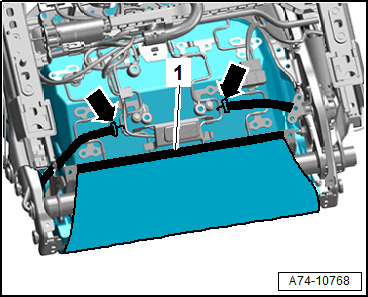

-- Detach the hooks -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the cover molding -1- using the Backrest Panel Tool:3370 .

-- Detach the cushion with cover from the seat pan and remove. If equipped, guide out the seat heating wiring harness.
