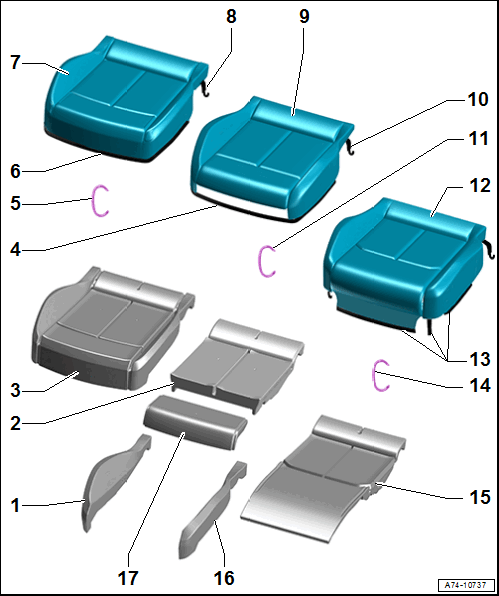

Overview - Seat Pan Cover And Cushion
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Bolster Cushion
- Sport/Super Sport/Comfort seats
- Removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Versions with seat heating: attach a new heating element when replacing. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING .
- Seat Cushion
- Sport/Super Sport seats
- Covers and Cushions, Removing and Installing. Refer to SEAT BOLSTER CUSHION / SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SPORT/SUPER SPORT SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING .
- Seat Cushion
- Standard Seat
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING .
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
- Upholstery Clip
- For securing the cover to the cushion
- Always replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
- Cover
- Standard Seat
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Rubber Tab
- Sewn into cover
- Engaged in the seat pan to tighten the cover
- Cover
- Sport/Super Sport seats
- Covers and Cushions, Removing and Installing. Refer to SEAT BOLSTER CUSHION / SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SPORT/SUPER SPORT SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
- Rubber Tab
- Sewn into cover
- Engaged in the seat pan to tighten the cover
- Upholstery Clip
- For securing the cover to the cushion
- Always replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
- Cover
- Comfort seat
- Covers and Cushions, Removing and Installing. Refer to SEAT BOLSTER CUSHION / SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, COMFORT SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Upholstery Clip
- For securing the cover to the cushion
- Always replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
- Seat Cushion
- Comfort seat
- Covers and Cushions, Removing and Installing. Refer to SEAT BOLSTER CUSHION / SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, COMFORT SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING .
- Seat Bolster Cushion
- Sport/Super Sport/Comfort seats
- Removing and installing. Refer to SEAT BOLSTER CUSHION / SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SPORT/SUPER SPORT SEAT .
- Versions with seat heating: attach a new heating element when replacing. Refer to DRIVER AND FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING .
- Cushion
- For the seat depth adjustment
- Sport/Super Sport seats
- Removing and installing. Refer to SEAT DEPTH ADJUSTER CUSHION, REMOVING AND INSTALLING .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT DEPTH ADJUSTER HEATING ELEMENT, REMOVING AND INSTALLING .
