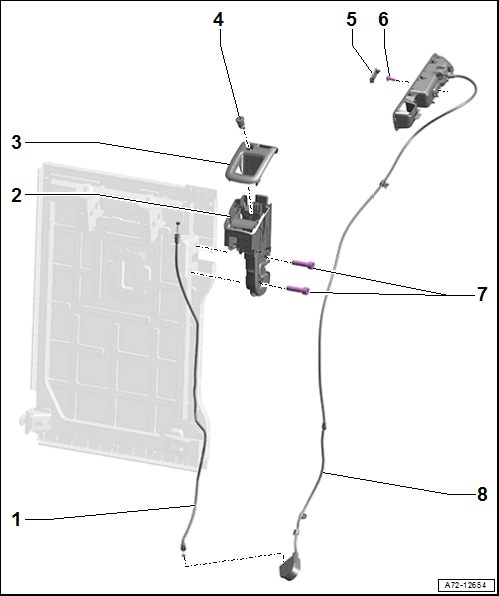

Overview - Locking Mechanism
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Release Cable
- For remote backrest release
- Equipped on some models
- Clipped onto the backrest frame
- Locking Mechanism
- For folding backrest
- Equipped on some models
- Removing and installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .
- Trim
- For the locking mechanism
- Equipped on some models
- Removing and installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Lock Cylinder
- Sedan only
- Equipped on some models
- Removing and installing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
- Remove before installing the lock cylinder protective cap
- Press on until it engages audibly
- Cap
- Equipped on some models
- Press on until it engages audibly
- Bolt
- Equipped on some models
- 2.5 Nm
- Bolts
- 25 Nm
- Remote Backrest Release
- Equipped on some models
- Removing and installing. Refer to REMOTE BACKREST RELEASE, REMOVING AND INSTALLING .
- Clipped to the vehicle floor
