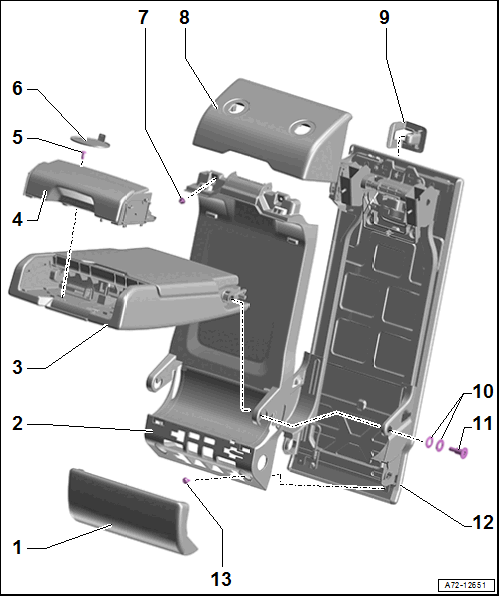

Overview - Center Armrest
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Center Cushion
- Lower
- Removing and installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, LOWER .
- Trim Panel
- For backrest with pass-through
- Removing and installing. Refer to BACKREST TRIM PANEL WITH PASS-THROUGH, REMOVING AND INSTALLING .
- Center Armrest
- Removing and installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
- Cupholder
- Removing and installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 3.5 Nm
- Cupholder Trim
- Quantity: 2
- Nut
- Quantity: 2
- 2 Nm
- Center Cushion
- Upper
- Removing and installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, UPPER .
- Trim
- For the locking mechanism
- Clip into the backrest with pass-through
- Press on until it engages audibly
- Washers
- Bolt
- Quantity: 2
- 8.5 Nm
- Backrest with Pass-Through
- Removing and installing. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2 Nm
