Lock Cylinder, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the locking mechanism trim and the lock cylinder. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
-- Make sure the indicator is in the >>top<< position.
CAUTION:
Improper handling increases the risk of destroying the lock cylinder.
The retainers and pressure springs could fall out.
- Remove and install the lock cylinder only with the key inserted correctly.

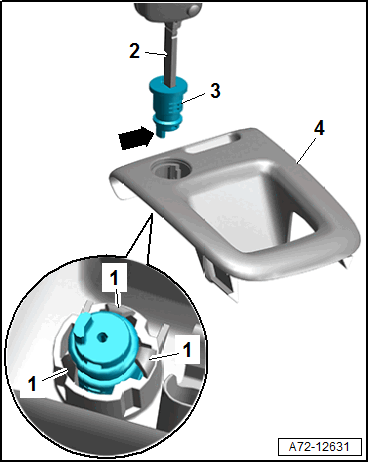

-- Release the tabs -1- using a flat-head screwdriver and press the lock cylinder -3- with key -2- out of the trim -4-.
