Center Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bench seat. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .

-- Fold the folding backrests forward.

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Tilt the securing bracket -2- forward and disengage downward from the center bearing -arrow- at the same time.

TIP:

Disengaging the folding backrests from the mountings will be enough.

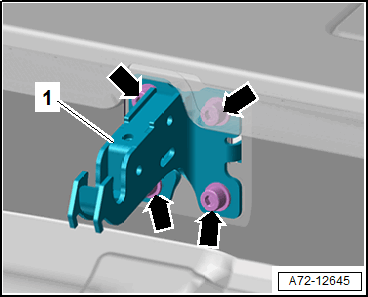

-- Raise the carpet slightly and remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the center bearing -1- and remove it.
