Backrest With Pass-Through, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right folding backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, FOLDING BACKREST .

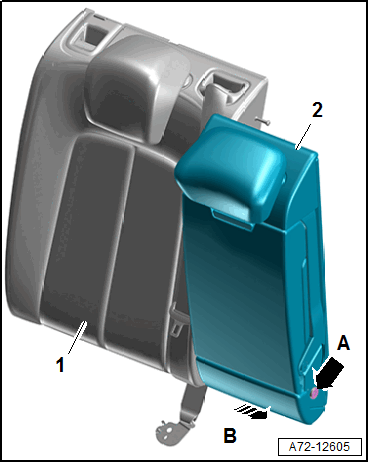

-- Remove the screw -arrow A-.
-- Release the backrest with pass-through at the right rear seat backrest.
-- Pull the backrest with pass-through -2- off the right rear seat backrest -1- -arrow B- and remove it.
