Backrest Trim Panel With Pass-Through, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the backrest with pass-through. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING .
-- Remove the center armrest. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
-- Remove the upper center cushion. Refer to CENTER CUSHION, REMOVING AND INSTALLING, UPPER .
-- Remove the lower center cushion. Refer to CENTER CUSHION, REMOVING AND INSTALLING, LOWER .

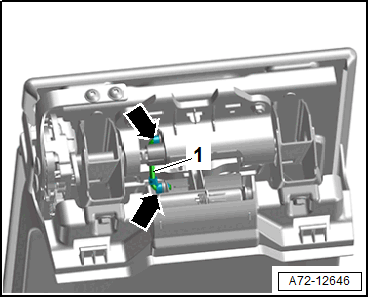

-- Unclip the pull rod clips -arrows- from the pull rod using a flat-head screwdriver.
-- Detach the backrest lock pull rod -1- and remove it.

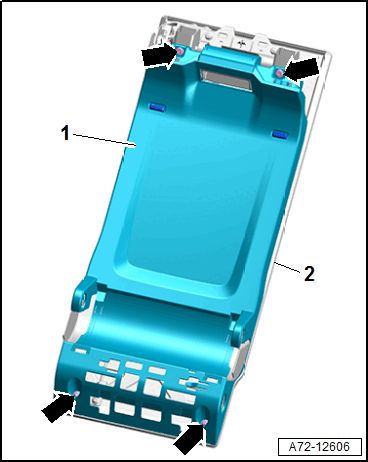

-- Remove the bolts and nuts -arrows-.
-- Release the trim panel -1- from the backrest with pass-through -2- and remove the panel.
