Seat Frame Trim Panel, Removing And Installing, Side Sill Side, Comfort Seat: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seat into its highest position.

-- Release the backrest cover tension bands -arrow- at the bottom of the seat pan.

Courtesy of AUDI OF AMERICA, LLC

-- Reach behind the backrest cover -1- and forcefully press the side of it toward the rear to remove it from the backrest frame -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Repeat the procedure on the opposite side -arrow B-.

-- Continue removing the backrest cover until the lower catches are released from the backrest frame -arrow C-.

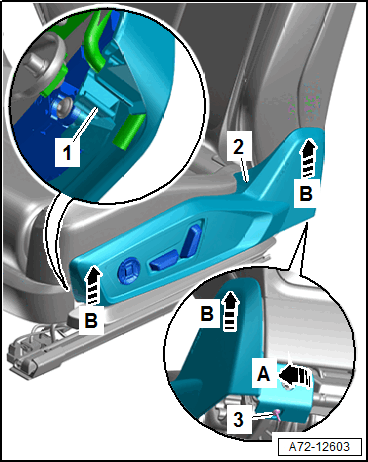

-- Remove the expanding rivet -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the tab -1- using a flat-head screwdriver.

-- Detach the rear of the seat frame trim panel -2- at the bracket -arrow A-.

-- Unclip the set frame trim panel at the bracket and remove it upward -B arrows-.

-- Disconnect the connectors by pressing the release.

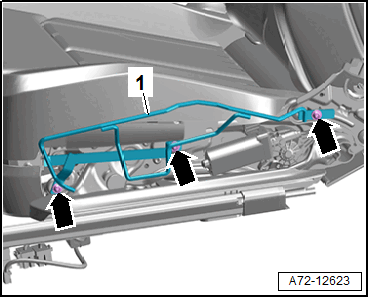

-- If necessary, remove the bolts -arrows- and remove the seat frame trim panel bracket -1-.

Courtesy of AUDI OF AMERICA, LLC
