Seat Depth Adjuster Support, Removing And Installing, Comfort Seat: Removing

-- Move seat depth adjuster forward.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the Engine/Transmission Holder - Seat Repair Fixture :VAS 6136  . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the seat frame trim panel/control module/compressor bracket. Refer to.Refer to SEAT FRAME TRIM PANEL/CONTROL MODULE/COMPRESSOR BRACKET, REMOVING AND INSTALLING

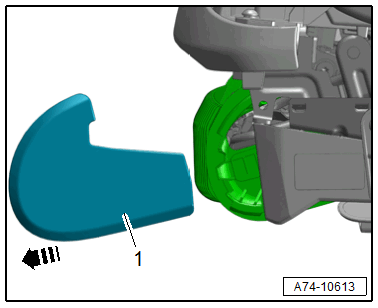

-- Remove the left and right trim -1- for the seat depth adjuster toward the front -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the molding -arrow- for the cover on the seat depth adjuster.

Courtesy of AUDI OF AMERICA, LLC

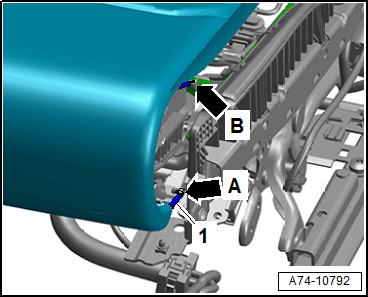

-- Disengage the left and right rubber bands -1- on the bottom of the seat depth adjuster -arrow A- and secure them from sliding back using a cable tie, for example.

Courtesy of AUDI OF AMERICA, LLC

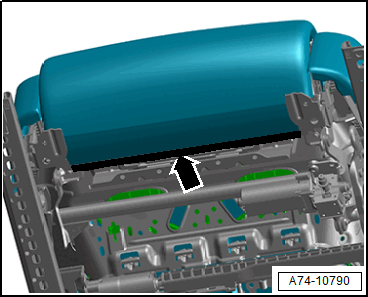

-- Release the tabs -2 and 3- and lift the seat depth adjuster cover slightly together with the cover and seat cushion.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- one at a time using a flat-head screwdriver and remove the seat depth adjuster support -1- forward.

Courtesy of AUDI OF AMERICA, LLC
