Lumbar Support Adjustment Motors -V125- / -V126- / -V129- / -V130-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

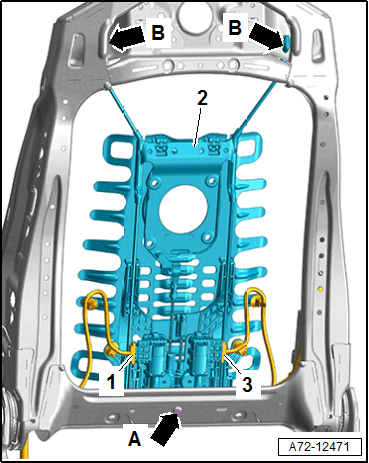

-- Disconnect the connectors -1 and 3- at the lumbar support forward/back and height adjustment motors.
-- Separate the cable ties or unclip the wiring harness from the lumbar support and free it up.
CAUTION:
Risk of injury due to flying metal shavings.
Irritation and injury to skin and eyes possible.
- Wear protective eyewear.
- Wear safety gloves.
-- Drill out the rivet -arrow A- or remove the bolt.
-- Pivot the lower lumbar support -2- forward from the backrest frame and disengage and remove from the top of the lumbar support -B arrows-.
