Seat Bolster Adjuster Air Cushion, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Disconnect the wiring harness connectors for the backrest and free up the disconnected wiring harnesses. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .

-- Remove the backrest. Refer to BACKREST, REMOVING AND INSTALLING .

-- Remove the seat cushion with cover. Refer to SEAT BOLSTER CUSHION / SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, COMFORT SEAT .

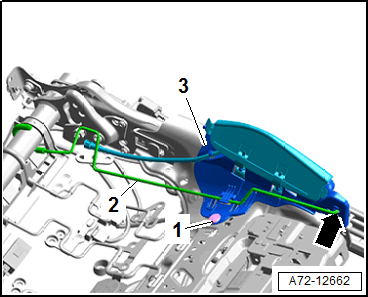

-- Unclip the upholstery wire -2- from the bracket -3- for the seat bolster inflation adjuster air cushion -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the upholstery wire and remove it.

-- Remove the expanding clip -1-.

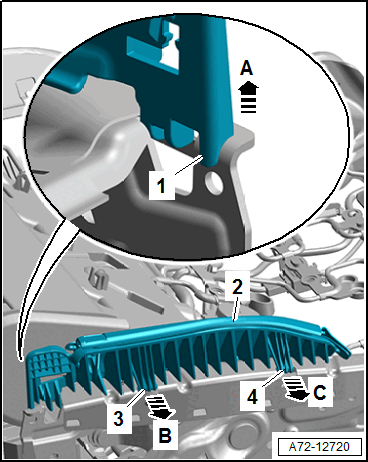

-- Lift up the bracket -2- with the air cushion for the seat bolster inflation adjuster slightly forward -arrow A- and disengage the edge -1- from the seat pan.

Courtesy of AUDI OF AMERICA, LLC

-- At the same time, disengage the bracket hook -3- for the seat bolster inflation adjuster at the front of the seat pan -arrow B-.

-- Disengage the rear hook -4- on the seat pan -arrow C- and remove the seat bolster inflation adjuster bracket.
