Component Location Overview - Transmission Control
WARNING: This page is about a different car, the 2024 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

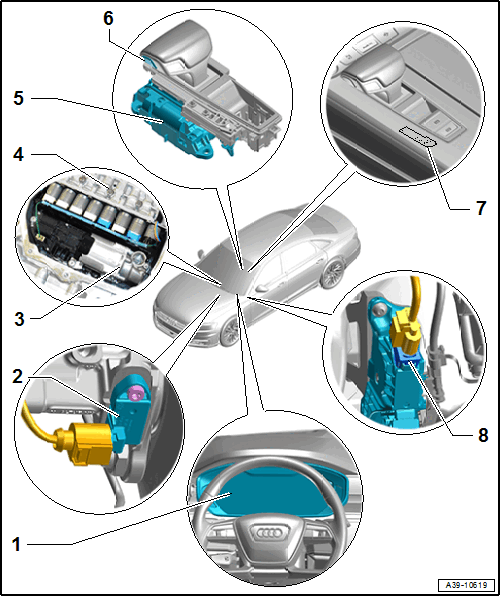

- Instrument Cluster
- With Instrument Cluster Control Module -J285-
- Overview. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Brake Lamp Switch -F- with Brake Pedal Position Sensor -G100-
- Overview. Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER
- Transmission Fluid Auxiliary Hydraulic Pump 1 -V475-
- Overview. Refer to TRANSMISSION FLUID SCREEN, REMOVING AND INSTALLING
- Mechatronic
- The following components are integrated in the Mechatronic:
- Transmission Control Module -J217-
- Solenoid Valve 1 -N88-
- Automatic Transmission Pressure Regulating Valve 1 -N215-
- Automatic Transmission Pressure Regulating Valve 2 -N216-
- Automatic Transmission Pressure Regulating Valve 3 -N217-
- Automatic Transmission Pressure Regulating Valve 4 -N218-
- Automatic Transmission Pressure Regulating Valve 5 -N233-
- Automatic Transmission Pressure Regulating Valve 6 -N371-
- Automatic Transmission Pressure Regulating Valve 7 -N443-
- Parking Lock Solenoid -N486-
- Transmission Fluid Temperature Sensor -G93-
- Transmission Input Speed Sensor -G182-
- Transmission Output Speed Sensor -G195-
- Temperature Sensor In Control Module -G510-
- Parking Lock Sensor -G747-
- The components cannot be replaced separately if faulty.
- OBD checks all components.
- Overview. Refer to OVERVIEW - ATF CIRCUIT
- The following components are integrated in the Mechatronic:
- Shift Mechanism
- The following components are integrated in the selector mechanism:
- Selector Lever -E313-
- Selector Lever Position Sensor -G727-
- Transverse Selector Lever Lock Sensor -G868-
- Selector Lever Sensor System Control Module -J587-
- Shift Lock Solenoid -N110-
- Transverse Selector Lever Lock Motor -V577-
- The components cannot be replaced separately if faulty.
- Overview. Refer to OVERVIEW - SHIFT MECHANISM .
- The following components are integrated in the selector mechanism:
- Selector Lever Handle
- The following components are integrated in the selector mechanism:
- Selector Lever Release Button -E681-
- Parking Lock Button -E816-
- The components cannot be replaced separately if faulty.
- Overview. Refer to OVERVIEW - SHIFT MECHANISM .
- The following components are integrated in the selector mechanism:
- Selector Lever Transmission Range Display -Y5-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CENTER CONSOLE LAMPS .
- Accelerator Pedal Module -GX2-
- With
- Accelerator Pedal Position Sensor -G79-
- Accelerator Pedal Position Sensor 2 -G185-
- Active Accelerator Pedal Motor -V592-
- Overview. Refer to ACCELERATOR PEDAL MODULE -GX2-, REMOVING AND INSTALLING .
- With
