Rear Lid Tail Lamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the light switch off.

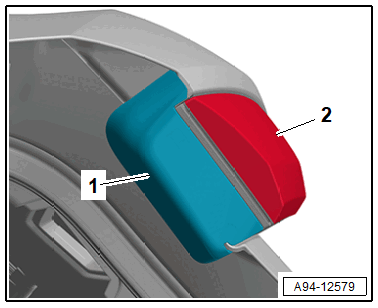

-- Remove the cover -1- for the tail lamp -2-.

-- Release the cover -2- with a screwdriver -1- at the cut-out from the clamps in the direction of -arrows- and remove.

Courtesy of AUDI OF AMERICA, LLC

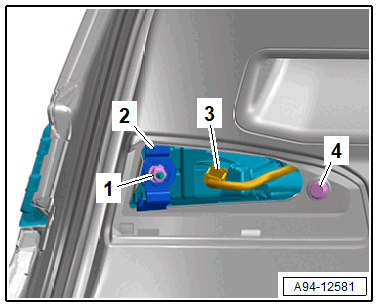

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- and the clamping bracket -2-.

-- Remove the bolt -4-.

-- Remove the tail lamp.
