Rear Lid Tail Lamp, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

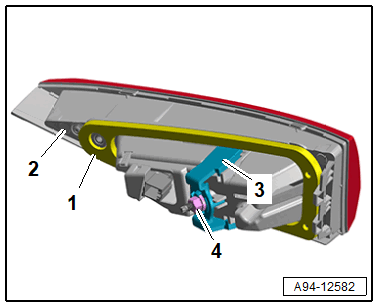

-- Check the self-adhesive seal -1- at the tail lamp -2- for damage.
- A damaged or incorrectly attached seal must be replaced.
TIP:
Water can leak into the interior due to a damaged or incorrectly adhering seal.
-- Attach the clamping bracket -3- to the tail lamp and screw in the nut -4- four turns.
-- Insert the tail lamp, then tighten the nut and the bolt.
TIP:
When tightening the nut the clamping bracket gets wedged at the rear lid.
-- Attach the cover to the tail lamp and press on.
