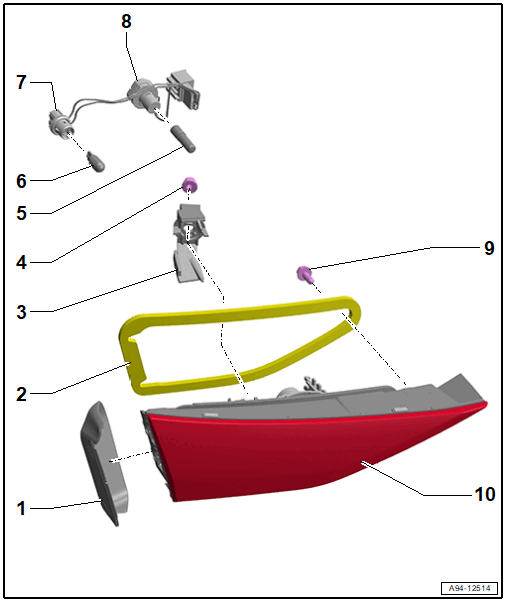

Overview - Rear Lid Tail Lamps
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Cover
- For the tail lamp
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Seal
- Self-adhesive
- Replace if damaged
- Clamping Bracket
- For securing the tail lamp to the rear lid
- Nut
- 4 Nm
- Bulb
- Left Rear Fog Lamp Bulb -L46-
- Right Back-Up Lamp Bulb -M17-
- Tail Lamp Bulb 2
- Left Tail Lamp Bulb 2 -M49-
- Right Tail Lamp Bulb 2 -M50-
- Bulb, Replacing. Refer to Left Tail Lamp Bulb 2 -M49- / Right Tail Lamp Bulb 2 -M50-, REMOVING AND INSTALLING .
- Bulb Socket
- Bulb Socket
- Bolt
- 4 Nm
- Rear Lid Tail Lamp
- LED version: If an LED is malfunctioning, the tail lamp must be completely replaced
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
