Overview - Body Tail Lamps

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

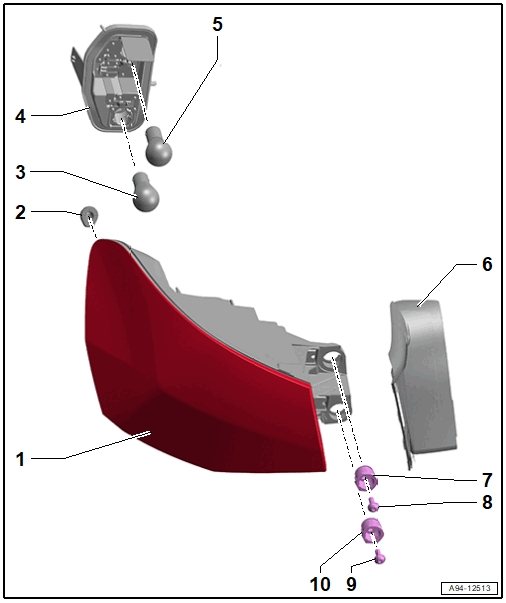

Fig 1: Exploded View Of Body Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

Tail Lamp
- Left Tail Lamp -MX3-
- Right Tail Lamp -MX4-
- LED version: If an LED is malfunctioning, the tail lamp must be completely replaced
- Removing and Installing. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR .
Clip Nut
Brake and Tail Lamp Bulb
- Left Brake/Tail Lamp Bulb -M21-
- Right Brake/Tail Lamp Bulb -M22-
- Bulb, Replacing. Refer to TAIL LAMP BULB HOLDER, REMOVING AND INSTALLING .
Bulb Holder
- Removing and Installing. Refer to TAIL LAMP BULB HOLDER, REMOVING AND INSTALLING .
Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-
- Right Rear Turn Signal Bulb -M8-
- Bulb, Replacing. Refer to TAIL LAMP BULB HOLDER, REMOVING AND INSTALLING .
Cover
- For the tail lamp
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR .
Bolt
- Quantity: 4
- 1.5 Nm
Bolt
- Quantity: 4
- 1.5 Nm
Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR .
