Tail Lamp Bulb Holder, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the tail lamp. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .

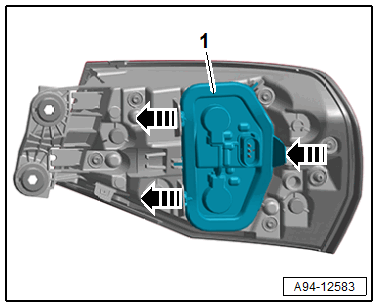

-- Release the retainers in the direction of -arrows-, then remove the bulb holders -1- from the tail lamp.

GWWA94-12583Courtesy of AUDI OF AMERICA, LLC

-- Remove the respective lamp from the bulb socket.
