Overview - Headlamps, 8EX

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

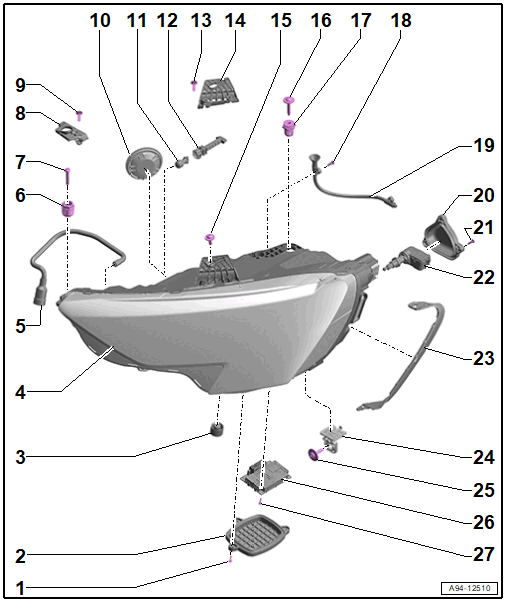

Fig 1: Exploded View Of Headlamps, 8EX

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- 1.5 Nm
Housing Cover
Filter Membrane
- Removing and Installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING .
Headlamp Housing
- Removing and Installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
Breather Hose
- For the headlamp housing
Adjusting Nut
- For the headlamp height adjustment
Bolt
- 6 Nm
Inner Tab
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING .
Bolt
- 6 Nm
Housing Cover
Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- 12 V, 24 W
- Bulb, Replacing. Refer to Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-, REMOVING AND INSTALLING .
Bulb Socket
- With the wiring harness
Bolt
- 6 Nm
Outer Tab
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING .
Bolt
- 6 Nm
Bolt
- 6 Nm
Adjuster
- For adjusting the headlamp housing to the bumper contour
Bolt
- Quantity: 2
- 1.1 Nm
Actuating Shaft
Housing Cover
Bolt
- Quantity: 3
- 1.5 Nm
Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and Installing. Refer to Left Headlamp Range Control Adjustment Motor -V48- / Right Headlamp Range Control Adjustment Motor -V49-, REMOVING AND INSTALLING, 8EX .
Sealing Frame
- Removing and Installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
Headlamp Housing Mount
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
Bolt
- 6 Nm
LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Removing and Installing. Refer to Right LED Headlamp Power Output Module 1 -A27- /Left LED Headlamp Power Output Module 1 -A31-, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 1.5 Nm
