Lower Longitudinal Member, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

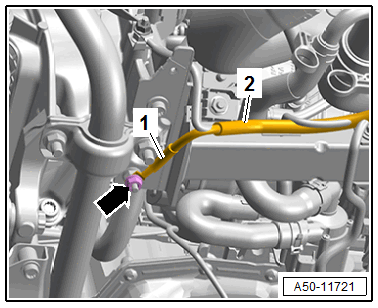

-- Right side of the vehicle: remove the nut -arrow-.
-- Remove the ground wire -1- and free up the wiring harness -2-.

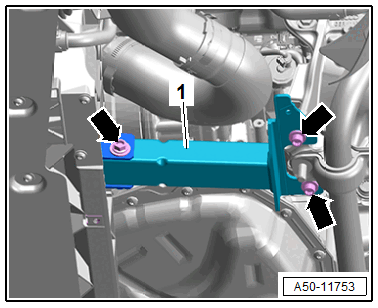

-- Remove the bolts -arrows- and remove the lower longitudinal member -1-.

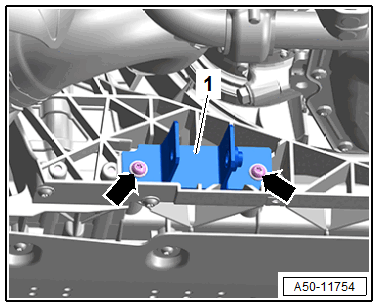

-- Remove the bolts -arrows-.
-- Remove the bracket -1-.
