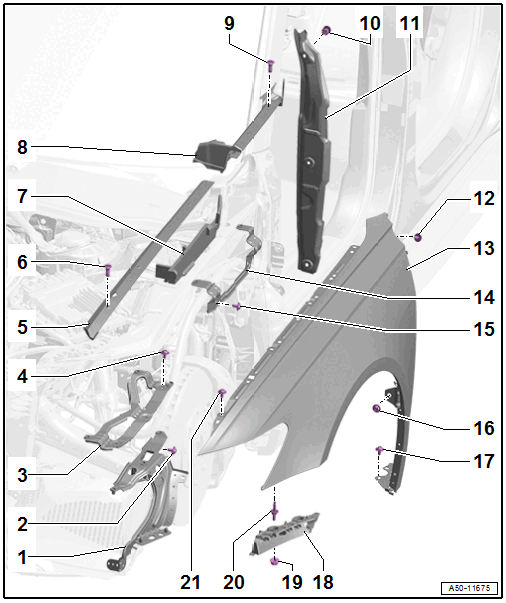

Overview - Fender, A6
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Fender Brace
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Bracket
- For the fender
- Only RS6
- Bolt
- 8 Nm
- Quantity: 2
- Front Cover for Fender
- Removing and Installing. Refer to FENDER FRONT COVER, REMOVING AND INSTALLING .
- Bolt
- For expanding clip
- Quantity: 5
- Seal
- Rear Cover for Fender
- Removing and Installing. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
- Bolt
- For expanding clip
- Quantity: 2
- Expanding Rivet
- Quantity: 3
- End Panel
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bracket
- For the fender
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 2
- Mount
- For the bumper cover
- Overview. Refer to OVERVIEW - BUMPER COVER .
- Nut
- Tightening Specification. Refer to OVERVIEW - BUMPER COVER .
- Quantity: 2
- Double Bolt
- 10 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 4
