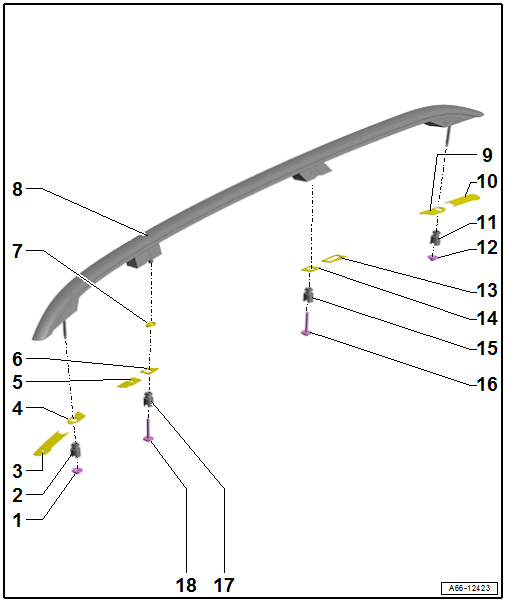

Overview - Roof Railing, A6 ALLROAD
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Insert with locking fluid. Refer to the Parts Information.
- Tightening specification and sequence. Refer to Fig 1.
- Lifter
- 1 Nm
- Removing and Installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Insert with locking fluid. Refer to the Parts Information.
- Seal
- Seal
- Seal
- Seal
- Seal
- Roof Railing
- Removing and Installing. Refer to ROOF RAILING, REMOVING AND INSTALLING .
- Seal
- Seal
- Lifter
- 1 Nm
- Removing and Installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Insert with locking fluid. Refer to the Parts Information.
- Nut
- Insert with locking fluid. Refer to the Parts Information.
- Tightening specification and sequence. Refer to Fig 1.
- Seal
- Seal
- Lifter
- 1 Nm
- Removing and Installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Insert with locking fluid. Refer to the Parts Information.
- Bolt
- Insert with locking fluid. Refer to the Parts Information.
- Tightening specification and sequence. Refer to Fig 1.
- Lifter
- 1 Nm
- Removing and Installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Insert with locking fluid. Refer to the Parts Information.
- Bolt
- Insert with locking fluid. Refer to the Parts Information.
- Tightening specification and sequence. Refer to Fig 1.
Roof Railing - Tightening Specification and Sequence
-- Tighten the bolts and nuts in the following sequence: -2, 3, 1 and 4-.
| Bolts/Nuts | Tightening Specification |
|---|---|
| -1, 3 and 4- | 10 Nm |
| -2- | 0.4 Nm |
