Undamaged Side Window, Removing, A6 Sedan

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Pay attention to the repair information. Refer to REPAIR INFORMATION .

Procedure

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

CAUTION:

Risk of injury to the hands and eyes from glass fragments.

Getting cut is possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Insert the Window Removal Set - Cutting Cord:VAS 861 001/1A in the awl -1-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

To prevent any damage, cover the area where the awl comes out at the body flange with adhesive tape.

-- Press the awl in this area from the outside inward through the adhesive bead and pull the cutting cord inward and through.

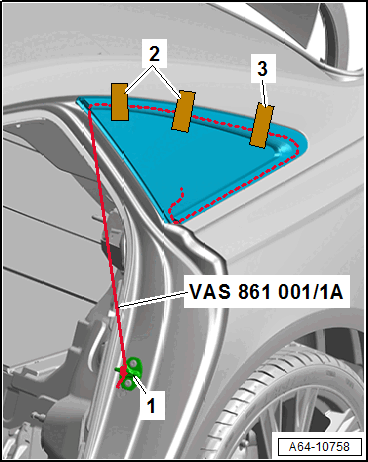

-- Route the Window Removal Set - Cutting Cord:VAS 861 001/1A under the side window and secure on the end of the striker -1-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

Slightly lift the molding using the trim wedge from the Window Removal Set:VAS 861 001A .

-- Secure the upper side window with adhesive tape -2 and 3-.

-- Secure the removal device -1- with the reel device on the inside of the window.

Courtesy of AUDI OF AMERICA, LLC

-- Push the Window Removal Set - Cutting Cord: VAS 861 001/1A in the reel device and direct it over the hook -2-.

-- Tension the cutting cord with the reel device.

-- Cut the first section free. This will guide the cutting wire into the integrated idler roller on the reel device.

-- The locating pins are cut at the same time.

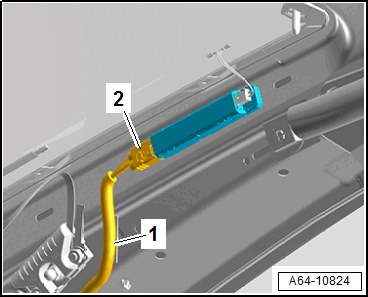

-- Disconnect the connector -2- and free up the wiring harness -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the hook -1- to the body.

Courtesy of AUDI OF AMERICA, LLC

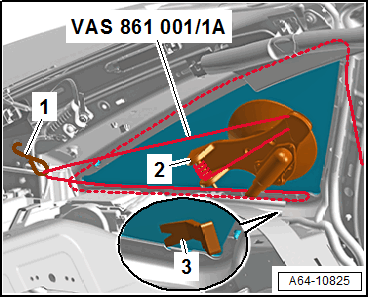

-- Cut out the bottom of the rear side window with the removal device -2-. The locating pins are cut at the same time.

-- To better guide the cord, place the trim wedge -3- from the Window Removal Set:VAS 861 001A underneath it.

-- Remove the hook and cut free the upper area on the D-pillar using the removal device -1-.

Courtesy of AUDI OF AMERICA, LLC

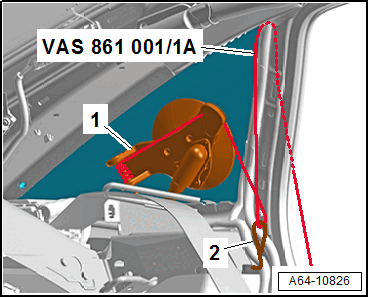

-- Insert the hook -2- on the body and cut out the upper corner of the side window using the removal device -1-. The locating pins are cut at the same time.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the side window from the side window frame.
