Overview - Battery A

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

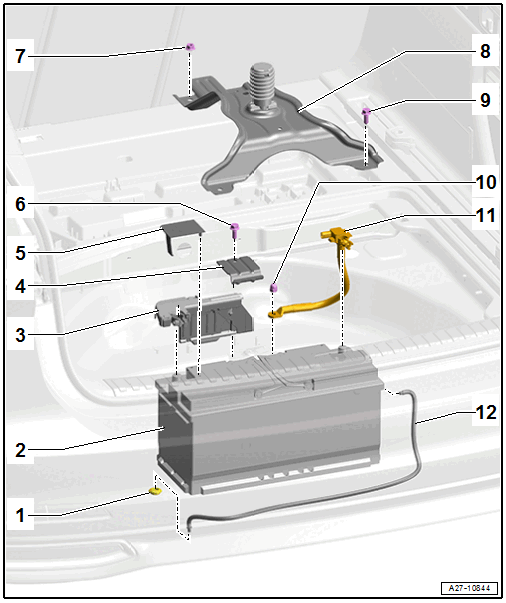

Fig 1: Exploded View Of Battery in Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

Grommet
Battery
- Refer to BATTERY A, DISCONNECTING AND CONNECTING, VEHICLES WITHOUT ALTERNATIVE DRIVE SYSTEM, (0K0) .
- Refer to BATTERY A, DISCONNECTING AND CONNECTING, VEHICLES WITHOUT ALTERNATIVE DRIVE SYSTEM, (0K0) .
Main Fuse Panel
- With battery terminal clamp for positive terminal
- Refer to OVERVIEW - MAIN FUSE PANEL
- 5 Nm
Retaining Bracket
Positive Terminal Cover
Bolt
- 18 Nm
Nut
- Quantity: 2
- 18 Nm
Retaining Bracket
- For the vehicle tool kit cover
Bolt
- Quantity: 2
- 18 Nm
Nut
- 20 Nm
Ground Wire
- With battery terminal clamp for negative terminal
- With Battery Monitoring Control Module -J367-
- Refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE J367, REMOVING AND INSTALLING, VEHICLES WITHOUT ALTERNATIVE DRIVE SYSTEM, (0K0) .
- 5 Nm
Central Venting System Hose
