Battery A, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Lift the luggage compartment floor cover.

A6 Avant, A6 allroad

-- Remove the dirt tray.

Continuation for all vehicles

-- If installed, remove the spare tire and vehicle tool kit mount.

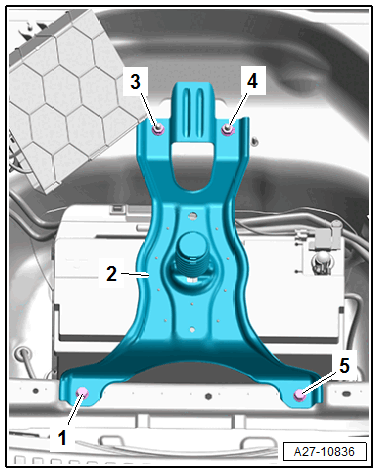

-- Remove the nuts -3- and -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -5-.

-- Remove the retaining bracket -2-.

-- Loosen the nut -1- and remove the Battery Monitoring Control Module -J367- -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the cover -1- over the battery positive terminal.

Fig 1: Battery Ground Cable Connector With Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nut -3- and remove the main fuse panel -2-.

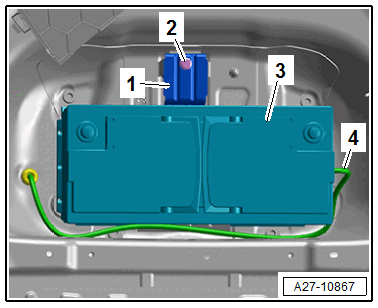

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the retaining bracket -1-.

-- Remove the central venting system hose -4-.

-- Remove the battery -3- upward.
