Battery A, Removing And Installing, Vehicles With 48V System, (VH2/VH3): Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Refer to 48V SYSTEM, DE-ENERGIZING .
-- Remove the right luggage compartment side trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR, VEHICLES WITH HIGH-VOLTAGE SYSTEM , or .

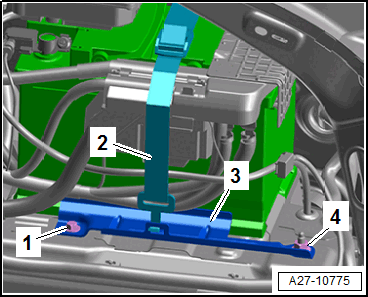

-- Loosen and detach the securing strap -2-.
-- Remove the nut -4-.
-- Remove the bolt -1-.
-- Remove the battery bracket -3-.

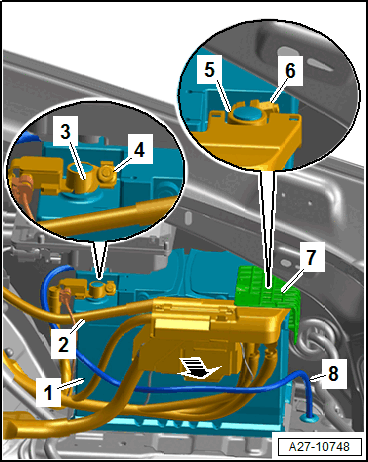

-- Free up the positive cable -2-.
-- Pull the battery -1- out -arrow- until the terminal clamps are accessible.
-- Loosen the nut -4- and remove the Battery Monitoring Control Module -J367- -3-.
-- Lift out the battery -1-.
