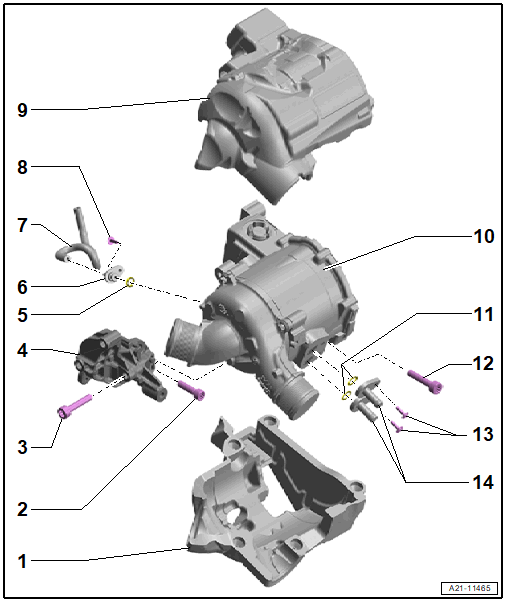

OVERVIEW - ELECTRICAL COMPRESSOR WITH Electric Compressor Control Module -J1123-
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Noise Insulation
- Bolt
- 23 Nm
- Bolt
- 23 Nm
- Bracket
- For Electrical Compressor/Electric Compressor Control Module -J1123-
- O-Ring
- Replace after removing
- Connection
- Vacuum Hose
- Bolt
- 3 Nm
- Noise Insulation
- Electrical Compressor/Electric Compressor Control Module -J1123-
- Removing and Installing. Refer to ELECTRICAL COMPRESSOR WITH Electric Compressor Control Module -J1123-, REMOVING AND INSTALLING .
- O-Rings
- Replace after removing
- Bolt
- 23 Nm
- Bolts
- 9 Nm
- Coolant Connection
