Charge Air Cooler, Removing And Installing, 2.9L Engine: Removing

-- Pay attention to the guidelines for clean working conditions. Refer to appropriate Repair Information .

-- Drain the coolant (refer to COOLANT, DRAINING AND FILLING ) and keep the Shop Crane - Drip Tray:VAS6208  below.

-- Lift the clamp -1- and remove the left upper coolant hose from the radiator and push to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -3- and disconnect the coolant hose.

-- Remove the left headlamp. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING .

-- Remove the left front wheel.

-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the left auxiliary radiator. Refer to LEFT AUXILIARY RADIATOR, REMOVING AND INSTALLING .

-- Loosen the clamps -1 and 3- and remove the air duct hose.

Courtesy of AUDI OF AMERICA, LLC

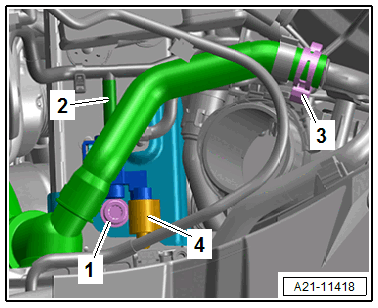

-- Disconnect the connector -4- for the Electrical Compressor Bypass Door Valve -N731-.

Fig 1: Electrical Compressor Bypass Door Valve -N731- Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum hose -2- at the same time to not damage it.

-- Loosen the hose clamp -3- and remove the coolant hose.

-- Remove the bolt -1-.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -1- and remove the coolant hose.

-- Disconnect the connector -2- for the Charge Air Pressure Sensor -G31-.

Courtesy of AUDI OF AMERICA, LLC

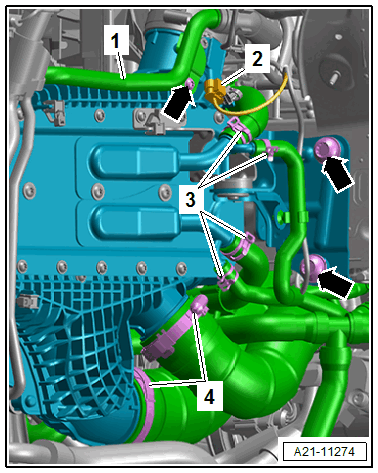

-- Loosen the hose clamps -4- and remove the air duct hoses.

-- Loosen the clamps -3- and remove the coolant hoses.

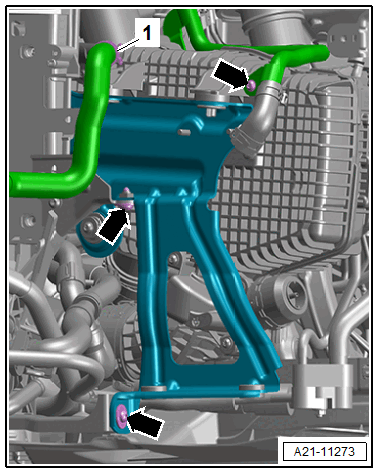

-- Remove the bolts -arrows- and the coolant pipe -1-.

-- Disengage the charge air cooler with bracket on the longitudinal member and remove.

-- Remove the bolts -arrows- and remove the coolant pipe -2-.

Courtesy of AUDI OF AMERICA, LLC

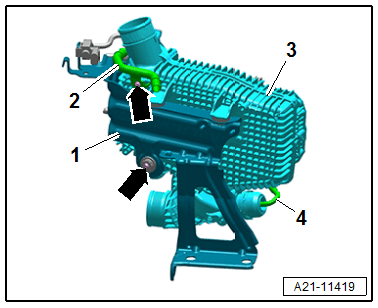

-- Remove and free up the vacuum hose -4-, do not damage in the process.

-- Disengage the charge air cooler -3- from the bracket -1- and remove.
