Washer Fluid Reservoir, Removing And Installing, A3/S3: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING, A3/S3 .

-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Place a drip tray under the washer fluid reservoir.

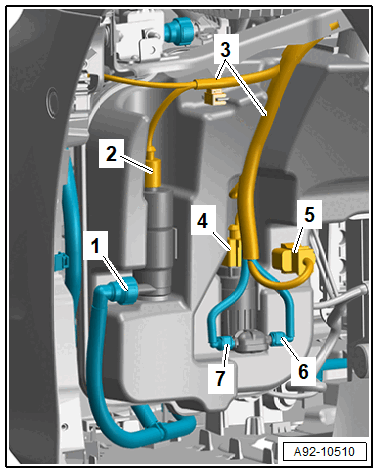

-- Disconnect the connectors -2, 4 and 5- and loosen the wiring harness -3- from the windshield washer fluid reservoir.

Courtesy of AUDI OF AMERICA, LLC

-- Release the clamps -6 and 7- and remove the washer fluid hoses from the windshield washer pump.

-- Equipment version: press the release buttons and remove the washer fluid hose -1- from the headlamp washer system pump.

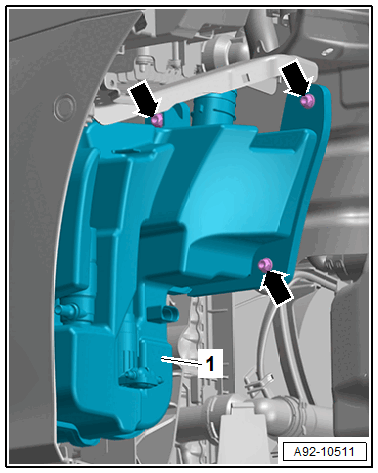

-- Remove the nuts -arrows- with Socket: T40078 and commercially available extension for the socket wrench.

Courtesy of AUDI OF AMERICA, LLC

-- Detach the washer fluid reservoir -1- from the threaded pins and remove.
