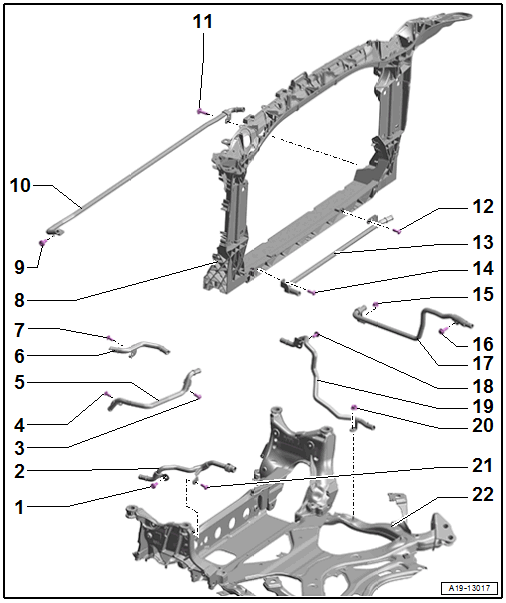

Overview - Coolant Pipes, Side Of The Vehicle
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- The marking on the coolant pipes and ends of coolant hoses must align.
- Bolt
- 8 Nm
- Left Coolant Pipe on Subframe
- Removing and Installing. Refer to LEFT COOLANT PIPE ON SUBFRAME, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Bolt
- 5 Nm
- Rear Coolant Pipe on Charge Air Cooler
- 2.9L engine only
- Front Coolant Pipe on Charge Air Cooler
- 2.9L engine only
- Bolt
- 5 Nm
- Lock Carrier
- Bolt
- 8 Nm
- Front Coolant Pipe on Lock Carrier
- 2.9L engine only
- Bolt
- 9 Nm
- Bolt
- 5 Nm
- Rear Coolant Pipe on Lock Carrier
- Bolt
- 5 Nm
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Right Coolant Pipe on Longitudinal Member
- Bolt
- 8 Nm
- Right Coolant Pipe on Subframe
- Removing and Installing. Refer to RIGHT COOLANT PIPE ON SUBFRAME, REMOVING AND INSTALLING .
- Nut
- Tightening specification. Refer to appropriate Service Information .
- Bolt
- 8 Nm
- Subframe
Upper Coolant Pipe On Transmission 0D5 - Tightening Specification
-- Tighten the bolts -arrows- to 9 Nm.
Lower Coolant Pipe on Transmission 0D5 - Tightening Specification
-- Tighten the bolts -arrows- to 9 Nm.
