Steering Column Adjustment Cable

A6 from MY 1995

-- Remove steering column and steering column tube ADJUSTABLE STEERING COLUMN AND STEERING COLUMN TUBE

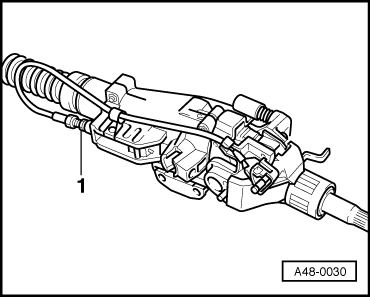

-- Loosen adjusting nut -1- to release tension on cable

Courtesy of AUDI OF AMERICA, LLC

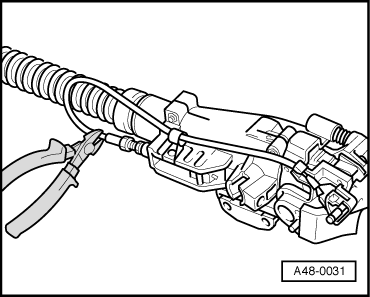

-- Cut cable with side cutter behind adjusting nut, and remove.

Courtesy of AUDI OF AMERICA, LLC

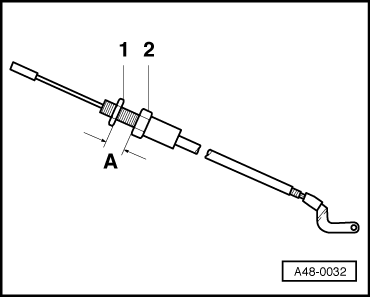

-- Check dimension -A- between adjusting nut -1- and mating piece -B- on new cable; correct if necessary.

Courtesy of AUDI OF AMERICA, LLC

Dimension -A- = 15 mm (0.59 in.)

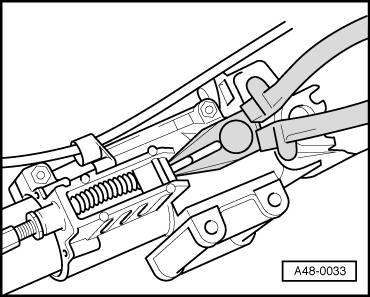

-- Slide new cable through adjusting mechanism and pinch spring sleeve on end of cable using standard pliers.

Courtesy of AUDI OF AMERICA, LLC

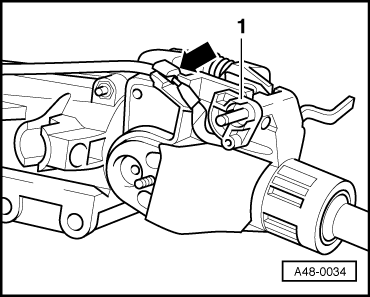

-- Install eccentric lever -1- of cable on steering column tube pin and install cable on bracket (arrow).

Courtesy of AUDI OF AMERICA, LLC

-- Adjust cable STEERING COLUMN ADJUSTMENT CABLE, ADJUSTING .

-- Install steering column with column tube into vehicle ADJUSTABLE STEERING COLUMN AND STEERING COLUMN TUBE .

-- Check fore/aft adjustment again and readjust cable if necessary STEERING COLUMN ADJUSTMENT CABLE, ADJUSTING .
